Quantum State¶

unitary : $S^\dagger S = SS^\dagger= I$
Hermitian : $S^\dagger=S$
projector : $SS=S$
$\otimes$ : tensor product

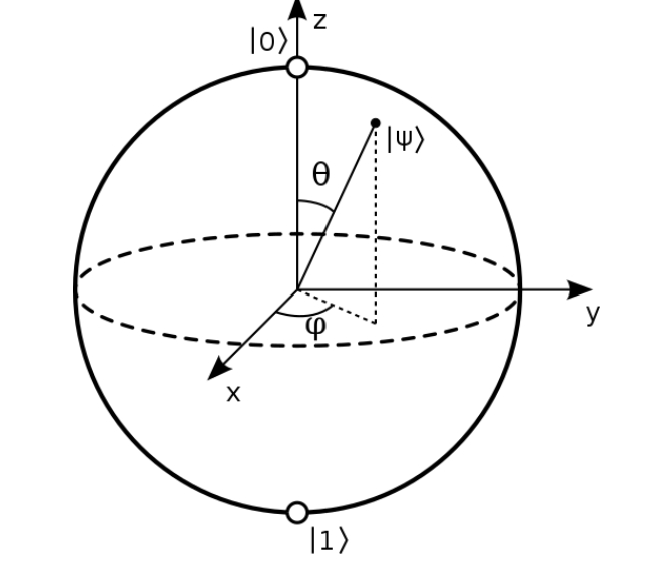

Bloch Sphere¶

\[ \begin{aligned} \ket \psi &=\alpha \ket 0 + \beta \ket 1 & \Vert \alpha \Vert^2 + \Vert \beta \Vert^2 = 1\\ &= \text{cos}(\theta/2)\ket 0 + e^{i\phi}\text{sin}(\theta/2)\ket 1 \\ &= \text{cos}(\theta/2)\ket 0 + (\text{cos}\phi + i~\text{sin}\phi) \text{sin}(\theta/2)\ket 1 \end{aligned} \]

$z$ axis : $\ket 0 = \begin{bmatrix}1\\0\end{bmatrix}\quad \ket 1 = \begin{bmatrix}0\\1\end{bmatrix}$
$x$ axis : $\ket + = \frac{1}{\sqrt 2}\begin{bmatrix}1\\1\end{bmatrix}\quad \ket - = \frac{1}{\sqrt 2}\begin{bmatrix}1\\-1\end{bmatrix}$
$y$ axis : $\ket +_y=\frac{1}{\sqrt 2}\begin{bmatrix}1\\i\end{bmatrix}\quad\ket -_y= \frac{1}{\sqrt 2}\begin{bmatrix}1\\-i\end{bmatrix}$

pauli matrices : $\hat \sigma_x = \begin{bmatrix}0&1\\1&0\end{bmatrix}\quad \hat \sigma_y=\begin{bmatrix}0&-i\\i&0\end{bmatrix}\quad \hat \sigma_z = \begin{bmatrix}1&0\\0&-1\end{bmatrix}$

No-cloning theorem¶

\[ \not \exists \hat U ~\forall \psi,\phi \quad U(\ket \psi\otimes \ket 0) = \ket \psi \otimes \ket\psi\quad U(\ket\phi\otimes \ket 0)=\ket \phi\otimes\ket \phi \]

Entanglement¶

\[ \ket {\Psi}_{AB} \neq \ket \alpha_A \otimes \ket \beta_B \]

Bell states : maximally entangled states for two qubits

\[ \begin{matrix} \ket {\Phi^+} = \frac{1}{\sqrt 2}(\ket {00}+\ket {11})& \ket {\Psi^+} = \frac{1}{\sqrt 2}(\ket {01}+\ket {10})\\ \ket {\Phi^-} = \frac{1}{\sqrt 2}(\ket {00} - \ket {11})& \ket {\Psi^-} = \frac{1}{\sqrt 2}(\ket {01} - \ket {10}) \end{matrix} \]

identify entanglement : more than 1 non-zero eigen values $\exist \lambda_1,\lambda_2 \neq 0$
product state : $\ket \Psi_{AB} = \ket \alpha_A \otimes \ket \beta_B$ no entanglement
Schmidt decomposition : $\ket\Psi\in \mathcal H_1\otimes \mathcal H_2\to \ket\Psi = \sum_{i=1}^m \lambda_i\ket {u_i}\otimes \ket{v_i}\quad \ket {u_i}\in \mathcal H_1,\ket{v_i}\in \mathcal H_2$
Schmidt rank : $m$
- independent from the choice of basis of $\mathcal H_A$ and $\mathcal H_B$
Schmidt coefficient : $\alpha_i$

Example

$\Psi = \frac{\ket {00}+\ket{11}+2\ket{++}}{\sqrt {10}} = \frac{3\ket{00}+2\ket{01}+2\ket{10}+3\ket{11}}{\sqrt{10}}$

schmidt rank : $4$

schmidt coefficient : $\frac{1}{\sqrt{10}}[3,2,2,3]$

Bell Inequality¶

	location $A$	location $B$
CHSH inequatlity	$Q=\pm 1\quad R=\pm 1$	$S=\pm 1\quad T=\pm 1$	$\langle QS\rangle+\langle RT\rangle+\langle RS\rangle-\langle QT\rangle\le 2$
Quantum Violation	$\hat Q = \hat\sigma_z\otimes I\\\hat R=\hat \sigma_x\otimes I\\$	$\hat S=\frac{-1}{\sqrt 2}\hat I\otimes(\hat \sigma_z+\hat \sigma_x)\\ \hat T = \frac{1}{\sqrt 2}\hat I\otimes (\hat \sigma_z -\hat \sigma_x)$	$\langle QS\rangle+\langle RT\rangle+\langle RS\rangle-\langle QT\rangle =2\sqrt 2>2$

Quantum Gate¶

Rotation¶

$R_x(\theta) = e^{-i\theta X/2}= \text{cos}(\theta/2)I - i~sin(\theta/2)X=\begin{bmatrix}\text{cos}(\theta/2)&-i~\text{sin}(\theta/2)\\-i~\text{sin}(\theta/2)&\text{cos}(\theta/2)\end{bmatrix}$
$R_y(\theta) = e^{-i\theta Y/2}= \text{cos}(\theta/2)I - i~sin(\theta/2)Y=\begin{bmatrix}\text{cos}(\theta/2)&-~\text{sin}(\theta/2)\\\text{sin}(\theta/2)&\text{cos}(\theta/2)\end{bmatrix}$
$R_z(\theta) = e^{-i\theta Z/2}= \text{cos}(\theta/2)I - i~sin(\theta/2)Z=\begin{bmatrix}e^{-i\theta/2}&0\\0&e^{i\theta/2}\end{bmatrix}$

Pauli Gates¶

$\sigma_{\{x,y,z\}}$ rotate around $\{x,y,z\}$ axis by $\pi$ in Bloch sphere

Hadamard Gate¶

$H$ rotation about axis $\frac{1}{\sqrt 2}(\hat x +\hat z)$ by $\pi$

$H\ket 0 = \frac{1}{\sqrt 2}(\ket 0 + \ket 1) = \ket +$
$H\ket 1 = \frac{1}{\sqrt 2}(\ket 0 - \ket 1) = \ket -$
$H \ket x = \frac{1}{\sqrt 2} (\ket 0 + (-1)^x\ket 1)$
$H^{\otimes n}\ket x = \frac{1}{\sqrt{2^n}}\sum_{y\in\{0,1\}^n}(-1)^{x\cdot y}\ket y$

Two qubits Gate¶

$\text{CNOT} = \ket 0_c\bra 0_c \otimes \hat I_t + \ket 1_c \bra 1_c \otimes \hat X_t$

$\text{CPAHSE} = \ket 0_c\bra0_c \otimes \hat I_t + \ket 1_c\bra 1_c\otimes \hat Z_t$

Matrix Table¶

Operator	Matrix	Operator	Matrix	Operator	Matrix
Pauli-x ($\sigma_x$)	$\begin{bmatrix} 0 & 1 \\ 1 & 0\end{bmatrix}$	Pauli-Y ($\sigma_y$)	$\begin{bmatrix}0 &-i\\ i & 0\end{bmatrix}$	Pauli-Z ($\sigma_z$)	$\begin{bmatrix}1 & 0\\0 &-1\end{bmatrix}$
Hadamard ($H$)	$\frac{1}{\sqrt{2}}\begin{bmatrix} 1 & 1 \\ 1 & -1\end{bmatrix}$	Identity ($I$)	$\begin{bmatrix}1&0\\0&1\end{bmatrix}$
Phase ($S$,$P$)	$\begin{bmatrix}1 & 0 \\0 & i\end{bmatrix}$	$\frac{\pi}{8}$ ($T$, not Clifford gate)	$\begin{bmatrix}1 & 0 \\ 0 & e^{i\pi / 4} \end{bmatrix}$
Controlled Not ($CNOT$, $CX$)	$\begin{bmatrix}1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0\\ 0& 0 & 0 & 1\\ 0 & 0 & 1 & 0\end{bmatrix}$	Controlled Z ($CZ$, $CSIGN$, $CPHASE$)	$\begin{bmatrix}1&0&0&0\\0&1&0&0\\0&0&1&0\\0&0&0&-1\end{bmatrix}$	SWAP	$\begin{bmatrix}1&0&0&0\\0&0&1&0\\0&1&0&0\\0&0&0&1\end{bmatrix}$

Universal quantum gates¶

Rotation gates $R_x(\theta),R_y(\theta),R_z(\theta)$, phase gate $P(\phi)$, CNOT
$\{\text{CNOT},H,T\}$
$\{\text{CNOT}\}\cup \mathcal U(2)$
$\{\text{Toffoli(CCNOT)},H\}$

Clifford group : $\mathcal C_n = \left\{U\in \mathcal U(2^n):\forall P\in\mathcal P_n:UPU^{\dagger}\in \mathcal P_n\right\}$ where $\mathcal U$ means unitary

Algorithms¶

Complexity¶

complexity class	problem	polynomial in time/space	classical / quantum
P	decision problem	time	classical
BPP	probabilistic algorithm failure at most $\frac{1}{3}$	time	classical
NP	proof the answer is yes	time	classical
PSPACE	decision problem	space	classical
BQP	decision problem failure at most $\frac{1}{3}$	time	quantum

$\text{BPP}\subset \text{BQP}$ : quantum simulation of classical circuits
$\text P\subset \text{BPP}$
$\text P\subset \text{NP}\subset \text{PSAPCE}$

Oracle¶

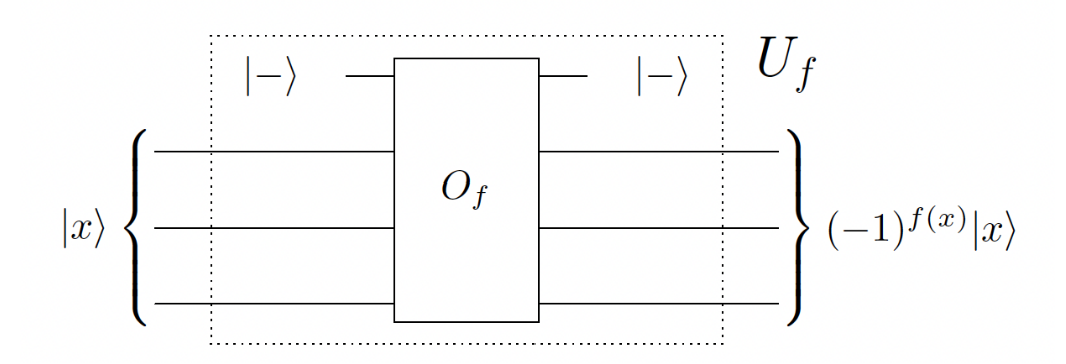

Phase oracle : $U_f\ket x = (-1)^{f(x)}\ket x$ $$ \begin{aligned} O_f\ket y\ket x &= \ket {y\oplus f(x)}\ket x\ O_f\ket -\ket x &= O_f\frac{1}{\sqrt 2}(\ket 0 - \ket 1)\ket x\ &= \frac{1}{\sqrt 2}(\ket {f(x)} - \ket{1\oplus f(x)})\ket x\ &= (-1)^{f(x)}\ket -\ket x \end{aligned} $$

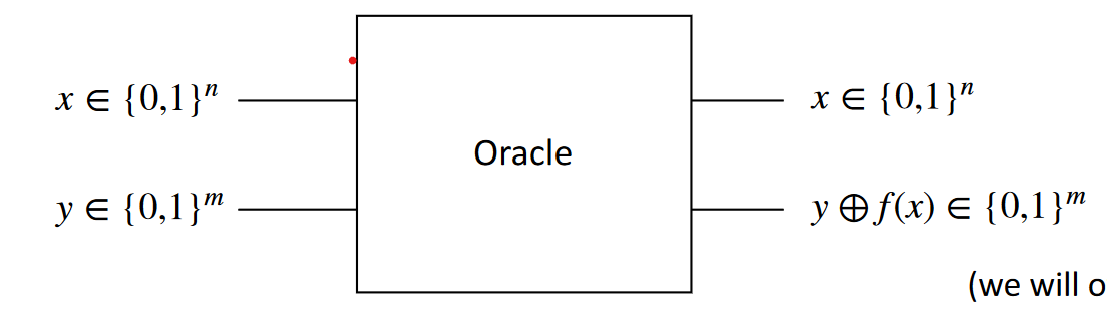

Bit oracle : $O_f\ket y\ket x = \ket {y\oplus f(x)}\ket x$

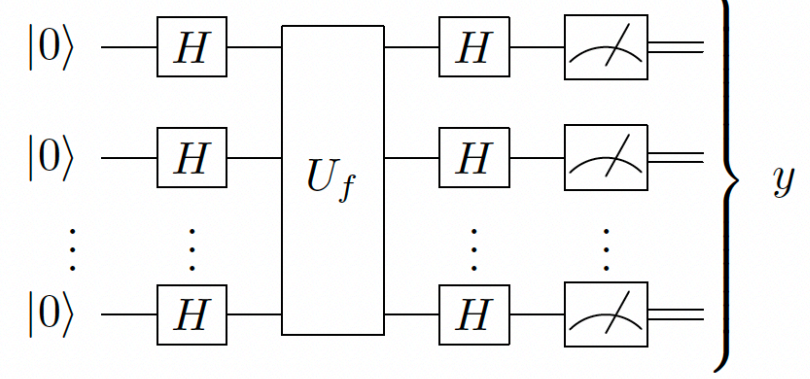

Deutsch-Josza¶

Distinguish $f(x)$ whether is constant function or balanced function. $\mathcal O(N) \to \mathcal O(1)$

constant: evaluates to the same value regardless of input
balanced: the number of inputs which output $1$ equals the number of inputs which output $0$

\[ \begin{aligned} \bra 0 ^{\otimes n} H^{\otimes n}U_f H^{\otimes n}\ket 0^{\otimes n} &= \bra 0 ^{\otimes n}H^{\otimes n} \textcolor{orange}{U_f}\underbrace{\left(\frac{1}{\sqrt {2^n}}\sum_{x\in\{0,1\}^n}\ket x\right)}_{H^{\otimes n}\ket 0^{\otimes n}}\\ &= \bra 0 ^{\otimes n}\textcolor{cyan}{H^{\otimes n}}\left(\frac{1}{\sqrt{2^n}}\sum_{x\in\{0,1\}^n}\textcolor{orange}{(-1)^{f(x)}}\ket x\right)\\ &= \bra 0 ^{\otimes n}\textcolor{cyan}{\frac{1}{\sqrt{2^n}}\sum_{x\in\{0,1\}^n}}\textcolor{orange}{(-1)^{f(x)}}\left(\frac{1}{\sqrt {2^n}}\sum_{y\in\{0,1\}^n}\textcolor{cyan}{(-1)^{x\cdot y}}\ket y\right)\\ &= \frac{1}{2^n}\sum_{x, y \in\{0,1\}^n}\textcolor{orange}{(-1)^{f(x)}} (-1)^{x\cdot y} \bra {0^{\otimes n}} \ket {y}\\ & = \frac{1}{2^n}\sum_{x\in\{0,1\}^n}\textcolor{orange}{(-1)^{f(x)}}\\ &=\begin{cases} 0 & f(x)~\text{is balanced} \\ \pm 1 & f(x)~\text{is constant} \end{cases} \end{aligned} \]

Notation :

$n$ : length of bit string

$N$ : total number of quantum state $N = 2^n$

$H$ : Hadamard gate

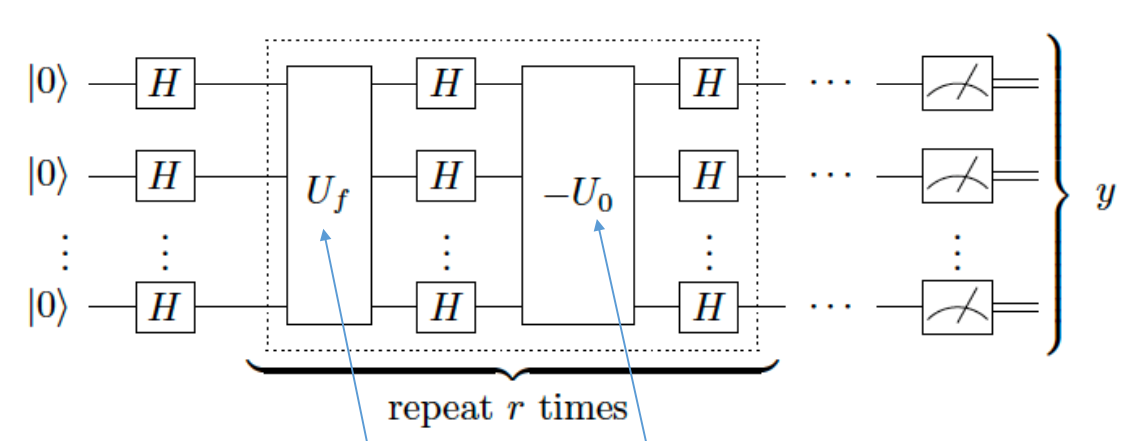

Grover¶

find the unique $x_0$ that $f(x_0)=1\quad f:\{1,\cdots,N\}\to \{0,1\}$, $O(N)\to O(\sqrt N)$

oracle operator : $U_f = I - 2\ket {x_0}\bra{x_0}\quad U_0 = I -2\ket 0 ^{\otimes n}\bra 0^{\otimes n}$
*grover diffusion *: $U_s = H^{\otimes n}(-U_0)H^{\otimes n} = 2\ket {+^n}\bra{+^n} - I$

Reflection

Reflection about $\ket{\psi_\perp}$: $R_{\psi_\perp} \ket{\phi} = (I-2\ket \psi\bra\psi)~(\alpha\ket \psi +\beta \ket {\psi_\perp}) =-\alpha\ket\psi +\beta \ket {\psi_\perp}$
$U_f=R_{x_{0}^\perp}$ reflect about $\ket {x_0^\perp}$
Reflection about $\ket {\psi}$ : $R_{\psi} \ket\phi =(2\ket \psi\bra\psi-I)~(\alpha\ket \psi +\beta\ket{\psi_\perp}) =\alpha\ket\psi -\beta\ket{\psi_\perp}$
$U_s=R_{+}$ : reflection about $\ket {+^n}$

\[ \begin{aligned} \bra{x_0} U_sU_f\ket \phi &= \text{cos}\left(\text{arccos}(\bra{x_0}\ket{\phi})-2\text{arcsin}(\bra{x_0}\ket {+})\right) \\ \bra{x_0}(U_sU_f)^r\ket {+^n} &= \text{cos}(\text{arccos}(\bra{x_0}\ket{+})-2r~\text{arcsin}(\bra{x_0}\ket{+})) \end{aligned} \]

\[ \Rightarrow r = \frac{\text{arccos}(\frac{1}{\sqrt N})}{2~\text{arcsin}(\frac{1}{\sqrt N})}\approx \frac{\pi\sqrt N}{4} \]

Algorithm

$\ket \Psi\gets H^{\otimes n}\ket 0^{\otimes n}$ : after this step $\ket\Psi = \ket {+^n}$

for $r$ times, $r=\frac{\text{artcos}(\frac{1}{\sqrt N})}{2\text{arcsin}(\frac{1}{\sqrt N})}$

$\ket\Psi \gets U_sU_f\ket \Psi$

measure $\ket \Psi$, the greatest probability will be $x_0$

Notation

$n$ : length of bit string

$N$ : total number of quantum state $N = 2^n$

$\ket {+^n} = \frac{1}{\sqrt {2^n}}\underset{x=\{0,1\}^n}{\sum} \ket x = \frac{1}{\sqrt N} \underset{x=\{0,1\}^n}{\sum}\ket x$

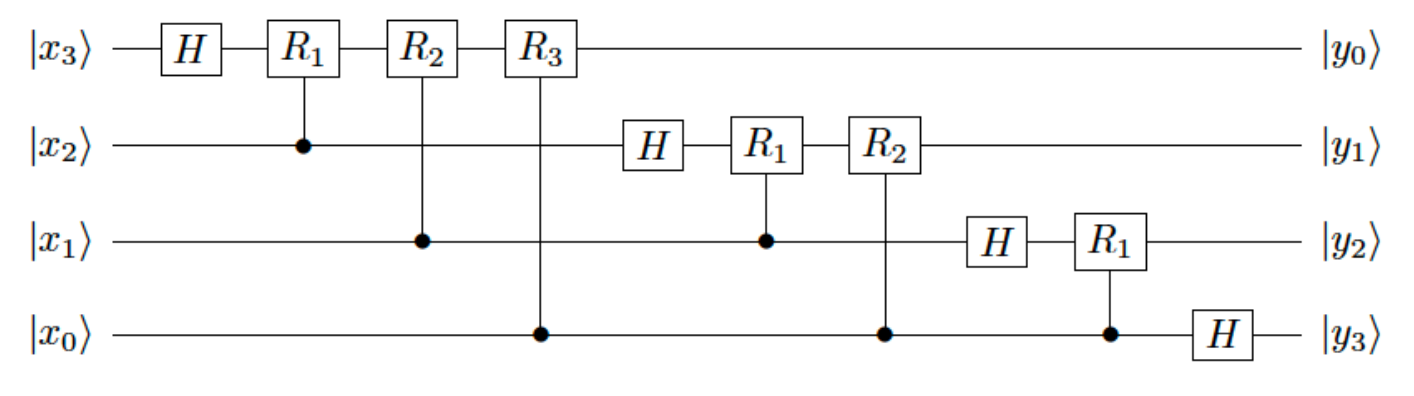

[QFT] Quantum Fourier transform¶

$Q_N \ket x = \frac{1}{\sqrt N}\overset{N-1}{\underset{y=0}{\sum}}e^{2\pi ixy /N}\ket y$ : $\mathcal O(N\text{log}N)\to \mathcal O(n^2)$ $$ \begin{aligned} Q_N \ket x &= \frac{1}{\sqrt N}\sum_{y\in{0,1}^n}e\ket y \ &= \frac{1}{\sqrt N}\sum_{y\in{0,1}^{n}\underbrace{e}}\ket {y_{n-1}}\cdots\ket {y_0}{\text{single bits of } e^{2\pi i xy/ N} } \ &= \frac{1}{\sqrt N}\otimes^{n\left(\sum_{y_{n-j}\in{0,1}}e}\right) \ &=\frac{1}{\sqrt N}(\ket {0_{n-1}} + e^{.x_02\pi i}\ket {1_{n-1}})\otimes(\ket {0_{n-2}}+e^{.x_1x_0 2\pi i }\ket {1_{n-2}})\cdots(\ket {0_0}+e^{.x_{n-1}\cdots x_0 2\pi i}\ket {1_0}) \ & = \frac{1}{\sqrt N}(H\ket {x_0})\otimes (R_1 H\ket {x_1}) \dots(R_{n-1}\dots R_1H\ket {x_{n-1}}) \end{aligned} $$}/2^j}\ket{y_{n-j}

Number of gates in QFT of $n$ bit string

$CR_j$ (Controled-$R_j$) : $\frac{n(n-1)}{2}$
SWAP : $\frac{n}{2}$ used to reverse the qubit, $\ket{y_0y_1y_2y_3}\to\ket{y_3y_2y_1y_0}$
$H$ : $n$

Notation

$n$ : length of bit string

$N$ : total number of quantum state $N = 2^n$

$R_d$ : rotation matrix : $R_d = \begin{bmatrix} 1 & 0\\ 0 & e^{\pi i/2^{d}} \end{bmatrix}$

$H$ : Hadamard gate : $H = \frac{1}{\sqrt 2}\begin{bmatrix}1&1\\1&-1\end{bmatrix}$ $H\ket {x_k} = \frac{1}{\sqrt 2}(\ket 0 + e^{.x_k2\pi i}\ket 1)$

$e^{.x_1x_0 }$ : $e^{\frac{1}{2}x_1+\frac{1}{4}x_0}$

Example $$ Q_2 = \frac{1}{\sqrt 2}\begin{bmatrix} 1&1\ 1&-1 \end{bmatrix} = H \quad Q_3 = \frac{1}{\sqrt 3}\begin{bmatrix} 1 & 1 & 1\ 1 & e^{2\pi i/3} & e^{-2\pi i/3}\ 1 & e^{-2\pi i /3} & e^{2\pi i /3} \end{bmatrix} \quad Q_4 = \frac{1}{2}\begin{bmatrix} 1&1&1&1\ 1&i&-1&-i\ 1&-1&1&-1\ 1&-i&-1&i \end{bmatrix} $$

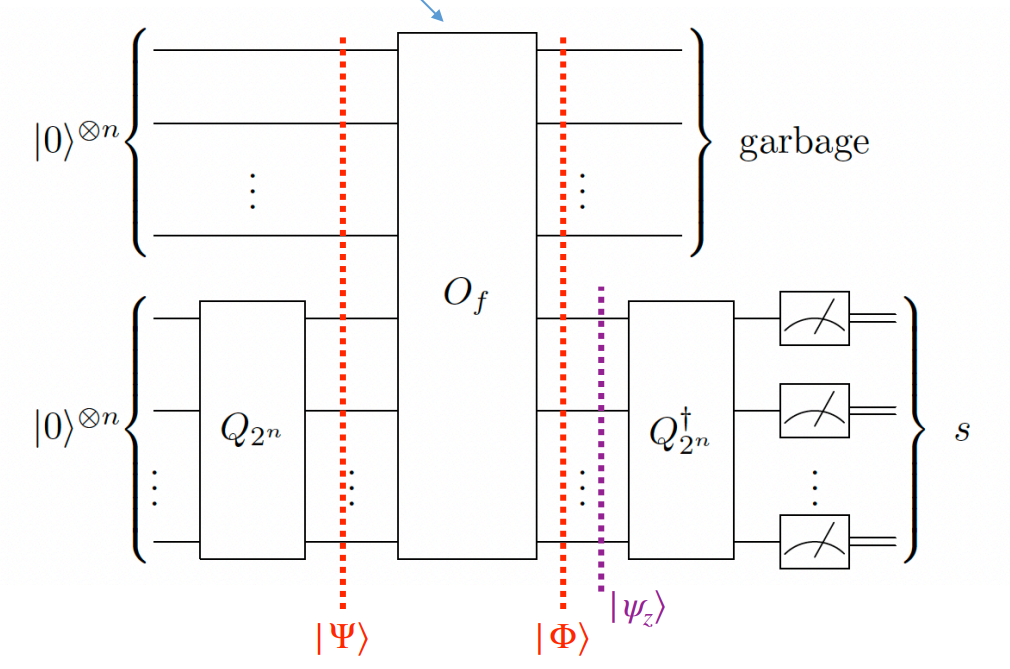

Shor factoring¶

given a non-prime integer $N$ represented as a bit string, find a non-trivial factor $a^x\text{mod} ~N$, $a^r\text{mod} N = 1\to(a^{r/2}+1)(a^{r/2}-1) \text{mod} N = 0$ $$ \begin{aligned} \ket {\Phi} &= O_f(\text{id}^{\otimes n}\otimes H^{\otimes n})\ket {0}^{\otimes n}\ket {0}^{\otimes n} \ &=O_f\frac{1}{\sqrt N}\sum_{x\in{0,1}^n}\ket {0}^{\otimes n}\ket x \ &=\frac{1}{\sqrt N}\sum_{x\in{0,1}^n}\ket {f(x)}\ket x \

\ket {\Psi_z} &= \sqrt{\frac{r}{N}}\sum_{t=0}^{N/r-1}\ket{x_0 + rt} \quad \propto \sum_{x:f(x)=z}\ket x \

\ket {\tilde \Psi_z} &= Q_{N}^\dagger\ket {\Psi_z} \ &= \sqrt{\frac{r}{N^{2}}\sum_{t=0}}}\sum_{y=0^{N-1}e\ket y \ &= \sqrt{\frac{r}{N^{2}}\sum_{y=0,ry\text{mod}=0}}\ket y \ &= \frac{1}{\sqrt r}\sum_{y=0,ry\text{mod}=0}}e^{-2\pi ix_0 y/N}\frac{N}{r^{N-1}e\ket y \end{aligned} $$

Algorithm

find the order $r$ that $a^x~\text{mod}~N= a^{x+r}~\text{mod}~N$ using period finding in $\mathcal O(\text{poly}(n))$

$\ket \Psi = I^{\otimes n} \otimes H^{\otimes n} \ket 0^{\otimes n}\otimes \ket 0^{\otimes n } =\ket {0}^{\otimes n}\otimes \left(\frac{1}{\sqrt N}\underset{x\in\{0,1\}}{\sum}\ket x\right)$

$\ket \Phi = O_f\ket \Psi = \frac{1}{\sqrt N}\underset{x\in\{0,1\}}{\sum}\ket {f(x)}\ket x$

measure $f(x)=z$ then $\ket{\Psi_z} = \sqrt{\frac{r}{N}}\overset{N/r-1}{\underset{t=0}{\sum}}\ket{x_0 + rt} \quad \propto \sum_{x:f(x)=z}\ket x$

$\tilde {\ket \Phi} = Q_N^\dagger \ket \Psi_z = \sqrt{\frac{r}{N^2}}\overset{N/r-1}{\underset{t=0}{\sum}}\overset{N-1}{\underset{y=0}{\sum}}e^{-2\pi i(x_0+rt)y/N}\ket y = \frac{1}{\sqrt r}\overset{N-1}{\underset{y=0,ry\text{mod}N=0}{\sum}}e^{-2\pi ix_0 y/N}\ket y$

measure $\tilde {\ket \Phi}$ multiple times $s_1,\cdots, s_i$, the results are multiples of $r$, use euclid algorithm to compute the $r = N / \text{gcd}(s_1,\cdots,s_i)$

if $r~\text{mod}~2 = 0$ and $a^{r/2}\pm1~\text{mod}~N\neq 0$

candidate factor $\tilde p=\text{gcd}(a^{r/2}-1,N)$ using euclid algorithm

else go to 1

@classical
def euclid_gcd(a, b):
    # O(logn)
    return b if a==0 else euclid_gcd(b%a, a)
@quantum
def period_finding(a, n, N):
    # a^r mod N = 1, O(N)
    Of = lambda x: a**x % N
    s0, s1 = None, None
    while True:
        x0, x1 = zeros(n), zeros(n)
        x0, x1 = I(x0), H(x1)
        x0, x1 = Of(x0, x1)
        if not measure(x0).all_equals(): # O(2^n/n) = O(N/n) fail
            continue
        x1 = IQFT(x1)
        if s0 is None:  # fail O(1)
            s0 = measure(x1)
            continue
        s1 = measure(x1)
        N_r= euclid_gcd(s0, s1) # N/r if k coprime k'
        s0, s1 = None, None
        r = N / N_r
        break

    return r

def shor_factoring(N):
    # find a factor of N
    n = ceil(log2(N))

    while True:
        a = random(N)
        K = euclid_gcd(a, N):
        if K != 1:
            return K

        r = period_finding(a, n, N)
        if is_odd(r): continue
        g = eulid_gcd(N, a**(r//2 + 1))
        if g != 1:
            return g

Error Correction¶

Quantum operations¶

Density operator : $\hat \rho = \underset{i,j}{\sum}\rho_{i,j}\ket i\bra j$
diagonal gives the probability of the state
Partial trace : $\text{Tr}_B(\ket {a_1}\bra {a_2}\otimes \ket {b_1}\bra{b_2}) = \ket {a_1}\bra{a_2}\text{Tr}(\ket {b_1}\bra{b_2})$
Purification : $\rho^A = \text{Tr}_R(\ket{AR}\bra{AR})$
Evolution : $\rho_t = U\rho_0U^\dagger$
Trace Preserving CP map : $\rho(t)=\tau_A(\rho_A(0))$
trace preserving : $\text{Tr}(\rho) = 1$
positive : $\lambda_\rho\ge 0$
complete positivity
Kraus Operator : $\rho' = \sum_i\hat E_i \rho_0\hat E_i^\dagger\quad \hat E_i = \bra {e_i}\hat U\ket {e_0}$

Damping channel¶

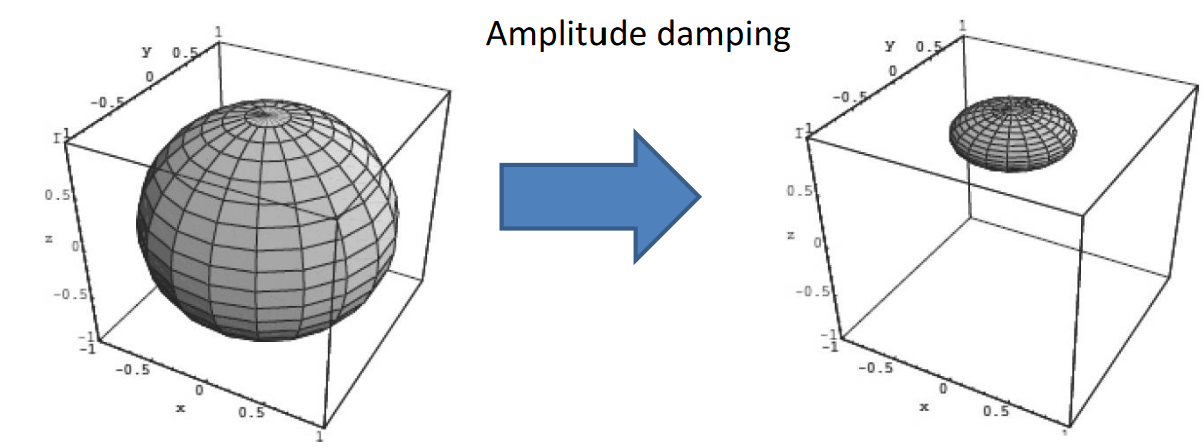

Amplitude Dampling ：$\hat E_1 = \begin{bmatrix} 0 & \sqrt \gamma \\ 0 & 0 \end{bmatrix} \quad \hat E_0 = \begin{bmatrix} 1 & 0 \\ 0 & \sqrt{1-\gamma} \end{bmatrix}$

excited state $\ket 1$ damping to $\ket 0$ due to loss of energy

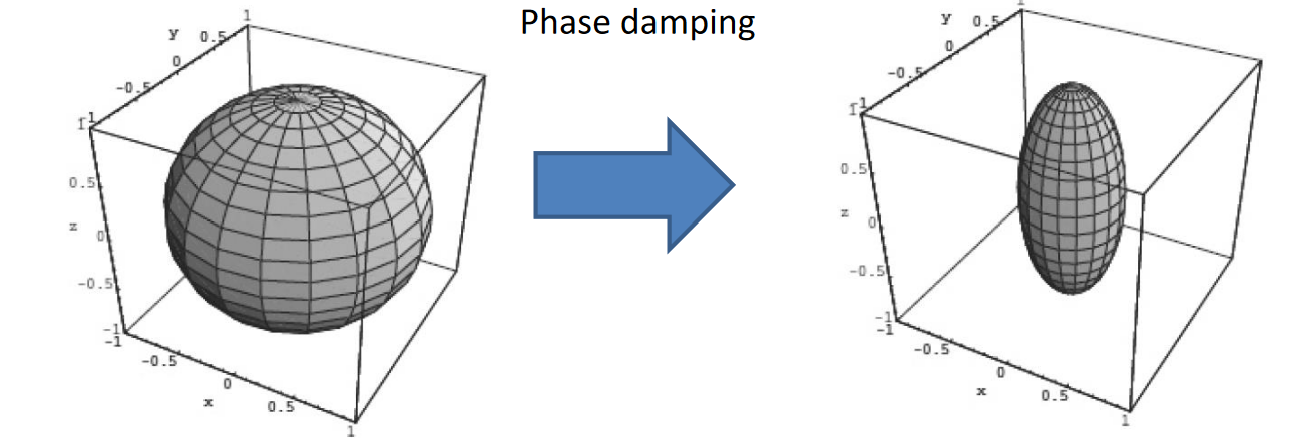

Phase Damping : $\hat E_1 = \begin{bmatrix} 0 & 0 \\ 0 & \sqrt r \end{bmatrix} \quad \hat E_0 = \begin{bmatrix} 1 & 0\\ 0 & \sqrt{ 1- r} \end{bmatrix}$

lossing phase information, energy conserved

Error Channels¶

Bit Flip : $\hat E_1 = \sqrt p X \quad E_0 = \sqrt{1-p} I$
Phase Flip : $\hat E_1 = \sqrt p Z \quad E_0 = \sqrt {1-p}I$
Phase+Bit Flip : $\hat E_1 = \sqrt p Y\quad \hat E_0 = \sqrt {1-p} I$
Depolarizing(Bit/Phase/Bit+Phase Flip) : $\hat E_1 = \frac{p}{4}X\quad \hat E_2 = \frac{p}{4}Y\quad \hat E_3 = \frac{p}{4}Z\quad \hat E_0 = \left(1-\frac{3p}{4}\right)I$
if code can correct Pauli $X$ and Pauli $Z$ errors then it can correct all the Pauli operator errors

Tomography¶

Process tomography : determine the effect of a quantum operation $\mathcal E(\hat \rho)=\underset{i,j}{\sum}\rho_{i,j}\mathcal E(\ket i\bra j)$
the map $\mathcal E$ is linear
$4$ inputs ($\ket 1\bra 1,\ket 0 \bra 0,\ket {+_x}\bra{+_x},\ket{+_y}\bra{+_y}$) for $1$ qubit, measure output $\rho$ for each input
State tomography : determine the state of a quantum system $\rho = \frac{I+ \vec r \cdot \vec \sigma}{2}$
$3$ measurement for $1$ qubit
$d^2-1$ ($4^n-1$?) measure for $n$-qubit state

Classical Error Correction¶

classical coding theory :

number of physical bits : $n$
number of logical bits : $k$
minimal bit flip to change the code : $d$
number of errors can be corrected : $t=\frac{d-1}{2}$

Quantum Error Correction¶

Fidelity : distance between quantum states

two pure states : $F(\ket\psi ,\ket \phi) = |\bra \psi\ket {\phi}|^2$
two mixed state : $F(\rho,\sigma)=\sqrt \sigma \rho \sqrt \sigma$
one pure state one mixed state : $F(\rho,\ket \psi) = \bra \psi \rho \ket \psi$

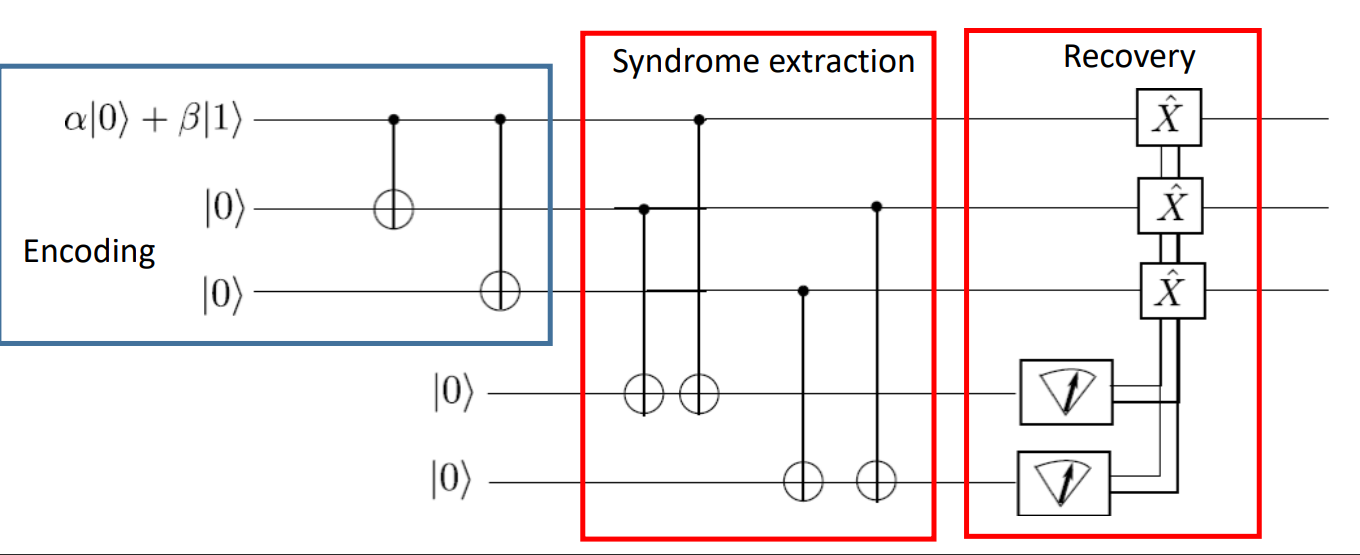

3-qubit bit-flip code : $(\alpha\ket 0 + \beta \ket 1)\otimes \ket 0 \otimes \ket 0 \to \alpha\ket {000}+\beta \ket{111}$

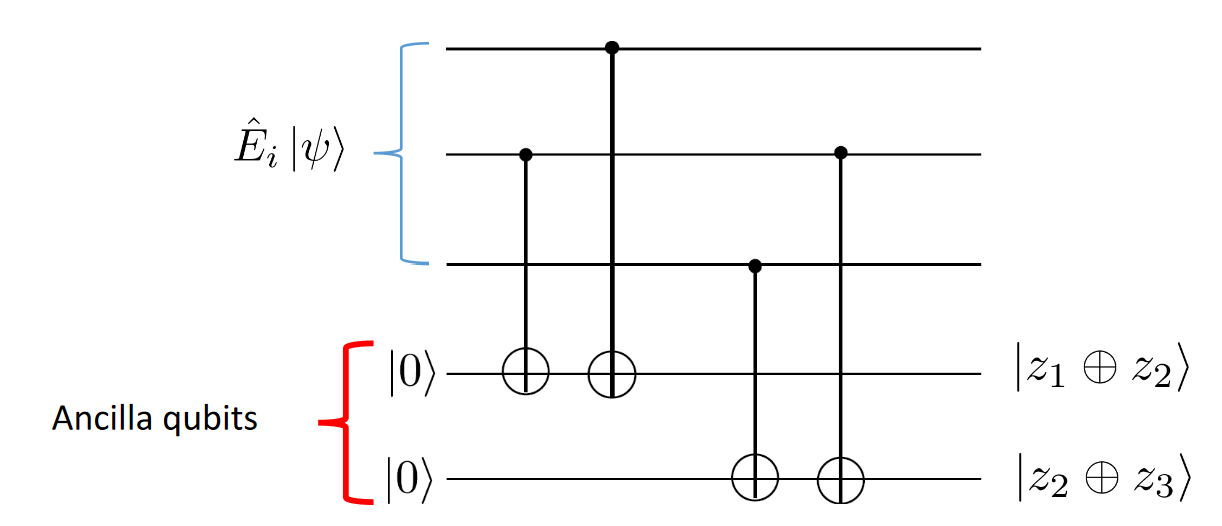

syndrome extraction

no error $$ (\alpha\ket{000}+\beta\ket{111})\ket{00}\to (\alpha\ket{000}+\beta\ket{111})\ket{00} $$
one error $$ \begin{aligned} (\alpha\ket{001}+\beta\ket{110})\ket{00}\to (\alpha\ket{001}\beta\ket{110})\ket{01} \ (\alpha\ket{010}+\beta\ket{101})\ket{00}\to (\alpha\ket{010}\beta\ket{101})\ket{11} \ (\alpha\ket{100}+\beta\ket{011})\ket{00}\to (\alpha\ket{100}\beta\ket{011})\ket{10} \end{aligned} $$

error	state	probability	syndrome	correction
$III$	$\alpha\ket{000}+\beta\ket{111}$	$(1-p)^3$	$0,0$	$III$
$XII$	$\alpha\ket{100}+\beta\ket{011}$	$p(1-p)^2$	$1,0$	$XII$
$IXI$	$\alpha\ket{010}+\beta\ket{101}$	$p(1-p)^2$	$1,1$	$IXI$
$IIX$	$\alpha\ket{001}+\beta\ket{110}$	$p(1-p)^2$	$0,1$	$IIX$

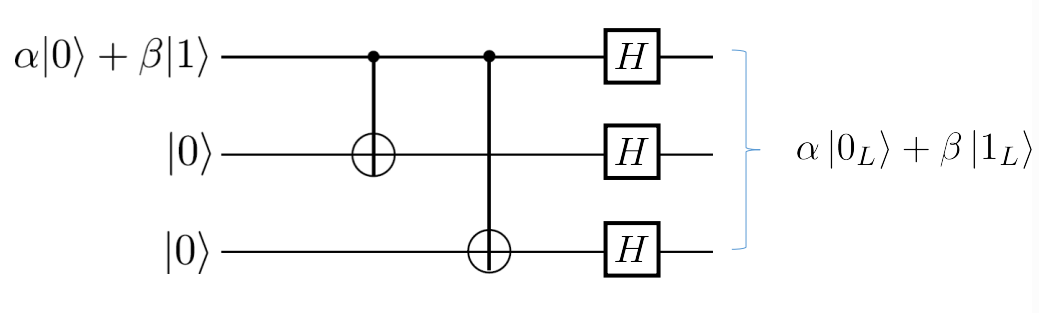

3-qubit phase-flip code : $(\alpha\ket 0 + \beta\ket 1)\otimes \ket 0 \otimes \ket 0 \to \alpha\ket{+++}+\beta\ket{---}$

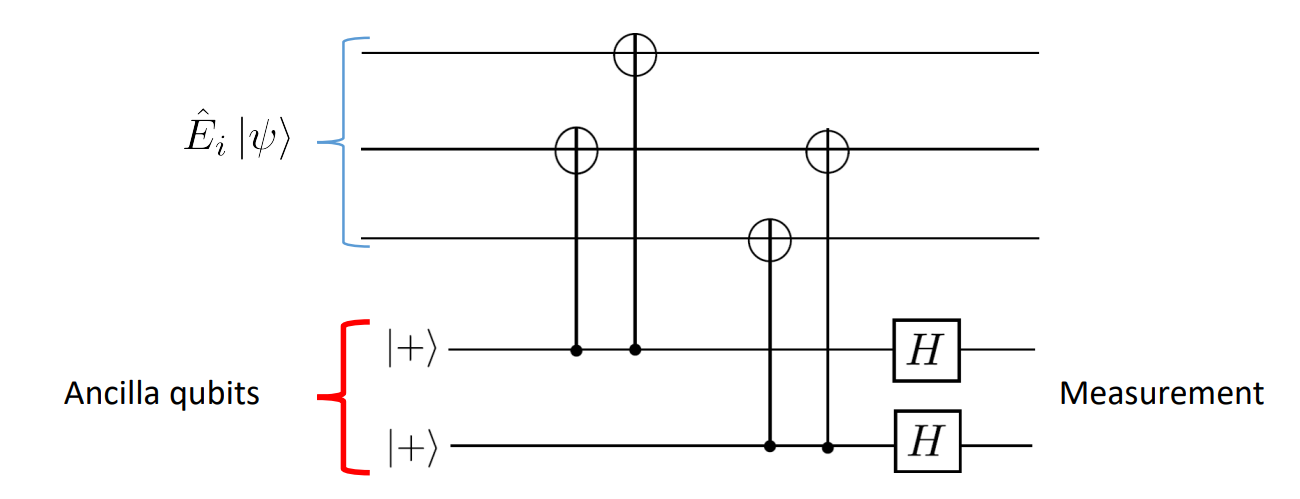

syndrome extraction

$$ \ket +\ket +\overset{\text{CNOT}}{\to}\ket +\ket+ \ \ket +\ket - \overset{\text{CNOT}}{\to}\ket -\ket - $$

no error $$ \ket {+++}\ket{++}\to \ket{+++}\ket {++}\ \ket {---}\ket{++}\to \ket{---}\ket{++} $$
one error $$ \ket {++-}\ket{++}\to\ket{++-}\ket{+-}\ \ket {+-+}\ket{++}\to\ket{+-+}\ket{--}\ \ket {-++}\ket{++}\to\ket{-++}\ket{-+} $$

error	state	probability	syndrome	correction
$III$	$\alpha\ket{+++}+\beta\ket{---}$	$(1-p)^3$	$0,0$	$III$
$ZII$	$\alpha\ket{-++}+\beta\ket{+--}$	$p(1-p)^2$	$1,0$	$ZII$
$IZI$	$\alpha\ket{+-+}+\beta\ket{-+-}$	$p(1-p)^2$	$1,1$	$IZI$
$IIZ$	$\alpha\ket{++-}+\beta\ket{--+}$	$p(1-p)^2$	$0,1$	$IIZ$

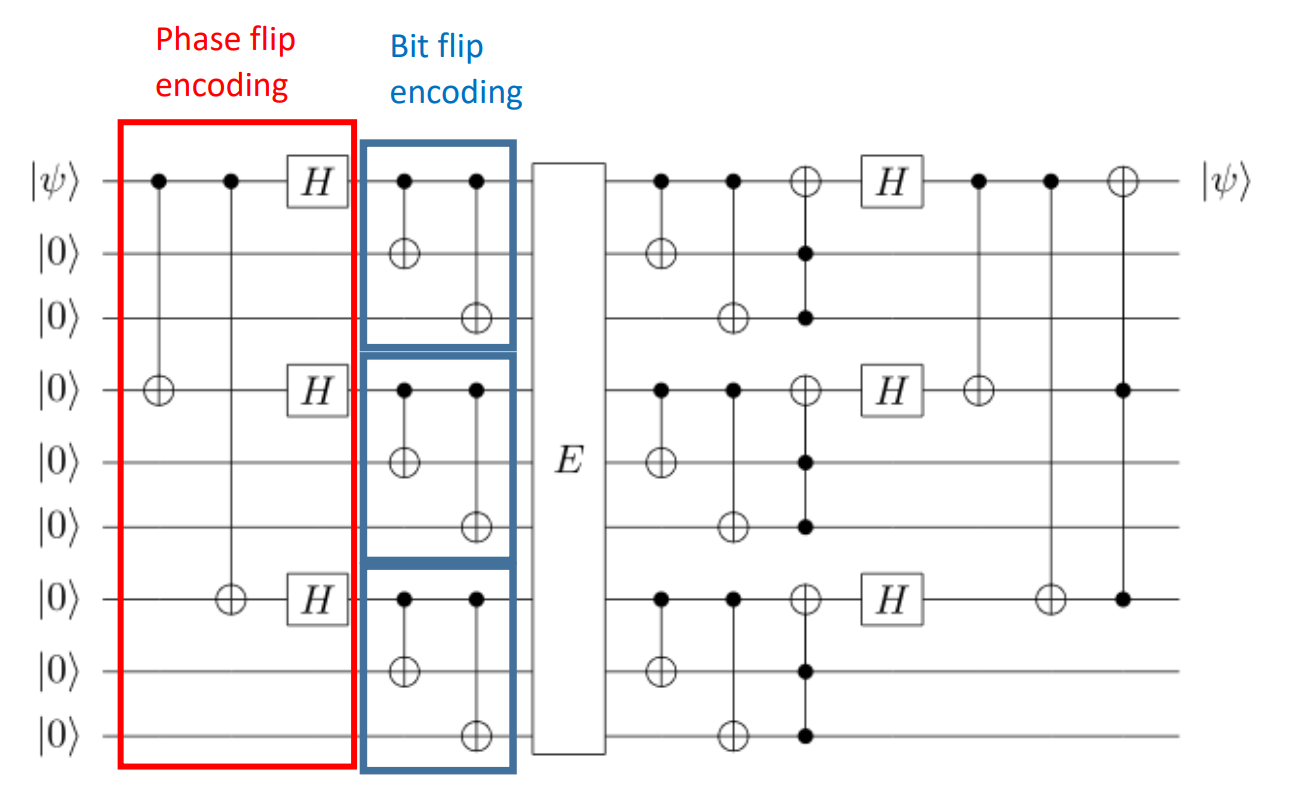

Shor 9-qubit concatenated code : $\alpha\ket 0_L+\beta\ket 1_L= \alpha(\ket{111}+\ket{000})^{\otimes 3}+\beta(\ket{111}-\ket{000})^{\otimes 3}$

syndrome

Bit errors : $Z_1Z_2,Z_2Z_3,~Z_4Z_5,Z_5Z_6,~Z_7Z_8,Z_8Z_9$
Phase errors : $X_1X_2X_3X_4X_5X_6,X_4X_5X_6X_7X_8X_9$
shor code can correct any single-qubit error that can be expressed as a linear combination of Pauli matrices

Knill-Laflamme condition¶

different errors lead to orthogonal states, $E_{\{a,b\}}$ are error operators $$ \bra {\Phi_i}E_a^\dagger E_b\ket{\Phi_j} = C_{ab}\delta_{ij} $$ error operators are linearly independent $$ \text{if}\quad E_a^\dagger E_b = I\quad \text{then} \quad C_{ab}=\sigma_{ab} $$

Notation

$\delta_{ij}$ : $\delta_{ij}=\begin{cases}1&i=j\\0&\text{otherwise}\end{cases}$

$C_{ab}$ : constant independent of $i,j$

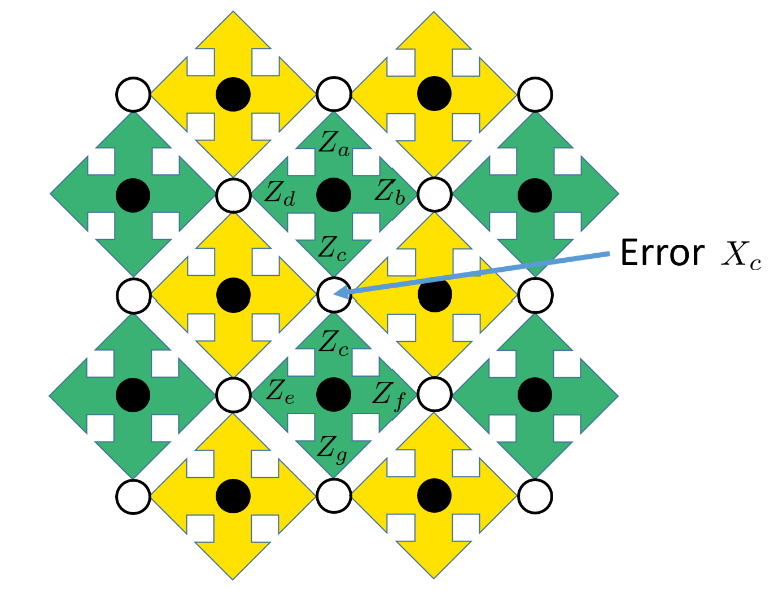

Stabilizer¶

applying any of the stabilizer operators to a codeword returns the same codeword $$ S\ket \phi =\ket\phi $$

Example : Bell state $\ket {\Phi^+}$ stabilized by two operators

$ZZ\ket {\Phi^+}=\ket{\Phi^+}$

$XX\ket{\Phi^+}=\ket{\Phi^+}$

Notation

$\mathcal P$ : pauli group : $\mathcal P =\{\pm I,\pm iI,\pm \sigma_x,\pm i \sigma_x,\pm \sigma_y,\pm i\sigma_y,\pm \sigma_z,\pm i\sigma_z\}$

$\mathcal P_n = \mathcal P^{\otimes n}$

$\mathcal P_n\mathcal P'_n=\bigotimes (\mathcal P_{n,i}\cdot \mathcal P'_{n,i})$

$A\cdot A = I\quad A\in\{X,Y,Z\}$

$A\cdot B = \epsilon_{ABC}iC\quad A,B,C\in\{X,Y,Z\}$

Example

$XZZXI\cdot IXZZX = X(iY)I(-iY)X$

$[\mathcal P_n,\mathcal P'_n]=0\Leftrightarrow \forall i~[\mathcal P_{n,i},\mathcal P'_{n,i}]=0$

commute if all element commute

$[\mathcal P_n,\mathcal P_n']=0 \Leftrightarrow \sum_i\mathbb 1_{\{\mathcal P_{n,i},\mathcal P'_{n,i}\}=0}~\text{mod}~2=0$

commute if even number of elements anti commute

$\{\mathcal P_n,\mathcal P'_n\}=0\Leftrightarrow \sum_i\mathbb 1_{\{\mathcal P_{n,i},\mathcal P'_{n,i}\}=0}~\text{mod}~2=1$

anti commute if odd number of elements anti commute

$\sigma_x,\sigma_y,\sigma_z$ : pauli matrices, $\sigma_x = \begin{bmatrix}0&1\\1&0\end{bmatrix}\quad \sigma_y = \begin{bmatrix}0&-i\\i&0\end{bmatrix}\quad \sigma_z = \begin{bmatrix}1&0\\0&-1\end{bmatrix}$

${[\sigma_i,\sigma_j]} = 2i\epsilon_{ijk}\sigma_k$, e.g.$[\sigma_i,\sigma_i] = 0\quad [\sigma_i, I] = 0$

$\{\sigma_i,\sigma_j\} = 2\delta_{ij}$, e.g.$\{\sigma_i,\sigma_j\} = 0\quad i\neq j$

$\sigma_i^2 = 1$

$[\cdot,\cdot]$ : commute $[A,B]=AB-BA$

$A,B \text{ commute}\Leftrightarrow [A,B]=0$

$\{\cdot,\cdot\}$ : anti commute $\{A,B\}=AB+BA$

$A,B \text{ anti-commute}\Leftrightarrow \{A,B\}=0$

$\epsilon_{ijk}$ : Levi-Civita symbol

even permutation : $\epsilon_{\{123,231,312\}} = 1$

odd permutation : $\epsilon_{\{213,132,321\}} = -1$

two of $i,j,k$ equal : $\epsilon_{ijk} =0$

$k$ : number of element in stabilizer generator

$n$ : number of element in the pauli group

Stabilizer group :

all elements commute with each other
does not contain $I^{\otimes n}$

Stabilizer generator : minimal set of operators generate all members by multiplication $\langle S_1,\cdots,S_k\rangle\to \{ S_1^{a_1}\cdots S_k^{a_k}\} \quad a_i\in\{0,1,2\}$

Example

$\underbrace{\langle ZZI,IZZ\rangle}_{\text{stabilizer generator}}\to \underbrace{\{III,ZZI,ZIZ,IZZ\}}_{\text{stabilizer group}}\quad \begin{matrix}k=2\\n=3\end{matrix}$

Example :

3-qubit bit-flip code : $\begin{array}{c|ccc}S_1&Z&Z&I\\S_2&I&Z&Z\\\hline Z_L&Z&Z&Z\\X_L&X&X&X\end{array}$

3-qubit phase-flip code : $\begin{array}{c|ccc}S_1&X&X&I\\S_2&I&X&X\\\hline Z_L&X&X&X\\X_L&Z&Z&Z\end{array}$

shor code : $\begin{array}{c|ccccccccc}S_1&Z&Z&I&I&I&I&I&I&I\\S_2&I&Z&Z&I&I&I&I&I&I\\S_3&I&I&I&Z&Z&I&I&I&I\\S_4&I&I&I&I&Z&Z&I&I&I\\S_5&I&I&I&I&I&I&Z&Z&I\\S_6&I&I&I&I&I&I&I&Z&Z\\S_7&X&X&X&X&X&X&I&I&I\\S_8&I&I&I&X&X&X&X&X&X\\\hline Z_L&X&X&X&I&I&I&I&I&I&\\X_L&Z&I&I&Z&I&I&Z&I&I\end{array}$

stean code : $\begin{array}{c|ccccccc}S_1&I&I&I&Z&Z&Z&Z\\S_2&I&Z&Z&I&I&Z&Z\\S_3&Z&I&Z&I&Z&I&Z\\S_4&I&I&I&X&X&X&X\\S_5&I&X&X&I&I&X&X\\S_6&X&I&X&I&X&I&X\\\hline Z_L&Z&Z&Z&Z&Z&Z&Z\\X_L&X&X&X&X&X&X&X\end{array}$

5-qubit code : $\begin{array}{c|ccccc}S_1&X&Z&Z&X&I\\S_2&I&X&Z&Z&X\\S_3&X&I&X&Z&Z\\S_4&Z&X&I&X&Z\\\hline Z_L &Z&Z&Z&Z&Z\\X_L&X&X&X&X&X\end{array}$

Stabilizer subspace dimension : $2^{n-k}$

code subspace e.g. $\ket 0_L$
orthogonal projector in subspace : $P_S\ket 0_L = \ket 0_L \quad P_S\ket 1_L = \ket 1_L \quad P_S\ket \psi=0$

Stabilizer group element : $2^k$

Error-Syndrome : $\begin{aligned}{[}E,S_i]&=0\Leftrightarrow \text{error not detected $(1)$}\{E,S_i}&=0\Leftrightarrow \text{error detected $(-1)$} \end{aligned}$

Example : bit flip error ($X$ error) at position $1$

$S=\{XZZXI,IXZZX,XIXZZ,ZXIXZ,ZZXIX\}\quad E = XIIII$

result : $\{1,1,1,-1,-1\}$

stabilizer + EC : $\text{for}~[E_b^\dagger E_a ,S_k]=0\quad\bra jE_b^\dagger E_a S_k\ket i = \lambda$

projector into subspace ：$P_j = \frac{I^{\otimes n}+S_j}{2}$ , the eigen value of projected state will only contains $\{0,1\}$

complexity : $O(n)$ stabilizer operators with $O(n)$ Paulis - $O(n^2)$ updates per gate

Gottesman-Knill theorem : A quantum circuit performing

Clifford gates (exception : T-gate, Toffoli gate)
measurement of the Pauli group operators
conditional Clifford group operations

can be simulated efficiently on a classical computer

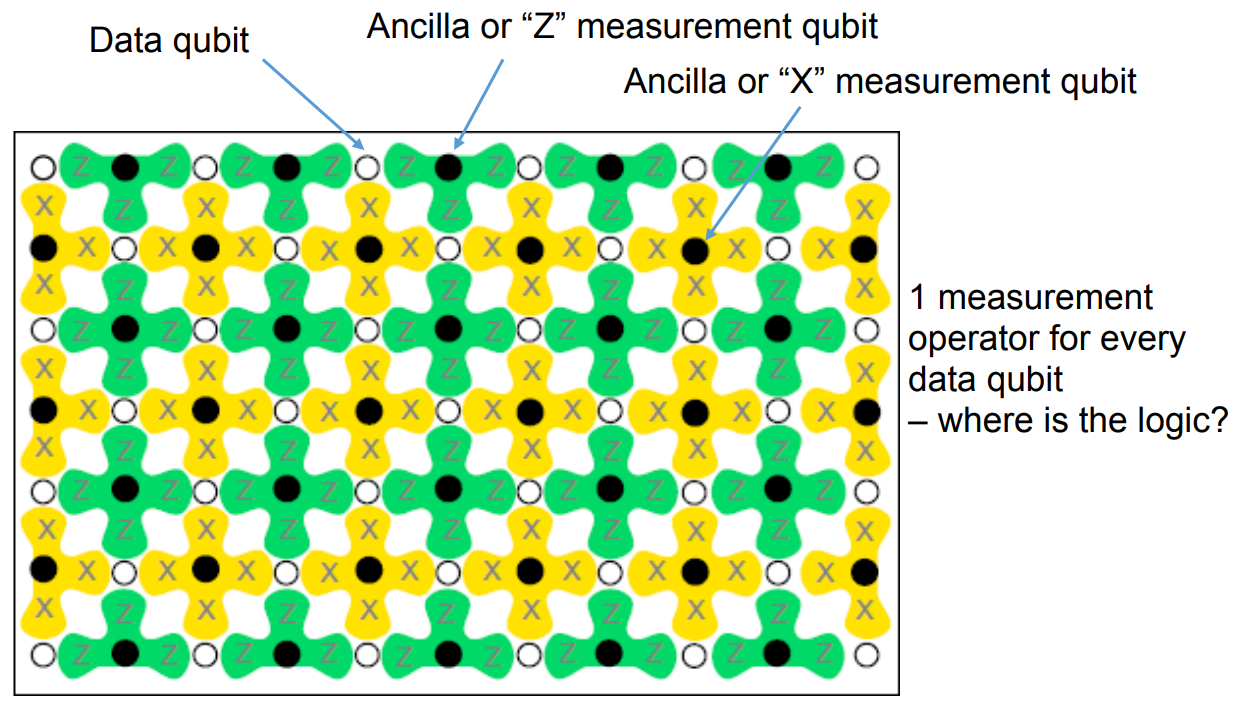

surface code¶

syndrome

Hamiltonian Simulation¶

$k$-local Hamiltonian : $H = \sum_{i=1}^m H_i \quad \text{$H_i$ acting on no more than $k$ qubits}$

Example : $X-Y$ model $$ H = \sum_{i=1}^n (J_xX_iX_{i+1}+J_yY_iY_{i+1}+J_zZ_iZ_{i+1}+hZ_i) $$ $2$-local hamiltonian

Solovay-Kitaev theorem ：unitary operator $U\in \mathcal U(2^n)$ which acts non-trivially on $k$ qubits, a universal set of gates $\mathcal S$ and $\varepsilon>0$, $\exists \tilde U\in \mathcal U(2^n)$ composed of $\mathcal O(\text{log}^c(1/\varepsilon))$ gates from $\mathcal S$ such that $\Vert \tilde U-U\Vert<\varepsilon$ with $c<4$

if all $H_i$ commute, $e^{-i\sum H_i t}=\prod_{i=1}^m e^{-iH_it}$

Suzuki-Trotter decomposition : $e^{iHt} = (e^{iH_1t/K}e^{iH_2t/K}\cdots e^{iH_mt/K})^K + \mathcal O(m^2h^2\frac{t^2}{K})$

total error :$\epsilon_T = m\epsilon_L K +\mathcal O\left(\frac{m^2h^2t^2}{K}\right)$
Lie-Trotter decomposition : $e^{(A+B)x} = e^Ae^B -\frac{1}{2}x^2[A,B]+\mathcal O(x^3)$, if $[A,B]=0$ then $\Vert e^{x(A+B)}-e^Ae^B\Vert \le \epsilon$
number of local terms in a $k$-local n-qubit Hamiltonian : $n^k$

Notation

$m$ : number of terms for Hamiltonian decomposition $H = \sum_{i=1}^m H_i$

$h$ : maximal norm of Hamiltonian term : $\Vert H_i\Vert\le h$

$K$ : Trotter step, $\Delta t =\frac{t}{K}$

$\epsilon_T,\epsilon_L$ : total error, local error for Trotter step

	location \(A\)	location \(B\)
CHSH inequatlity	\(Q=\pm 1\quad R=\pm 1\)	\(S=\pm 1\quad T=\pm 1\)	\(\langle QS\rangle+\langle RT\rangle+\langle RS\rangle-\langle QT\rangle\le 2\)
Quantum Violation	\(\hat Q = \hat\sigma_z\otimes I\\\hat R=\hat \sigma_x\otimes I\\\)	\(\hat S=\frac{-1}{\sqrt 2}\hat I\otimes(\hat \sigma_z+\hat \sigma_x)\\ \hat T = \frac{1}{\sqrt 2}\hat I\otimes (\hat \sigma_z -\hat \sigma_x)\)	\(\langle QS\rangle+\langle RT\rangle+\langle RS\rangle-\langle QT\rangle =2\sqrt 2>2\)

Operator	Matrix	Operator	Matrix	Operator	Matrix
Pauli-x (\(\sigma_x\))	\(\begin{bmatrix} 0 & 1 \\ 1 & 0\end{bmatrix}\)	Pauli-Y (\(\sigma_y\))	\(\begin{bmatrix}0 &-i\\ i & 0\end{bmatrix}\)	Pauli-Z (\(\sigma_z\))	\(\begin{bmatrix}1 & 0\\0 &-1\end{bmatrix}\)
Hadamard (\(H\))	\(\frac{1}{\sqrt{2}}\begin{bmatrix} 1 & 1 \\ 1 & -1\end{bmatrix}\)	Identity (\(I\))	\(\begin{bmatrix}1&0\\0&1\end{bmatrix}\)
Phase (\(S\),\(P\))	\(\begin{bmatrix}1 & 0 \\0 & i\end{bmatrix}\)	\(\frac{\pi}{8}\) (\(T\), not Clifford gate)	\(\begin{bmatrix}1 & 0 \\ 0 & e^{i\pi / 4} \end{bmatrix}\)
Controlled Not (\(CNOT\), \(CX\))	\(\begin{bmatrix}1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0\\ 0& 0 & 0 & 1\\ 0 & 0 & 1 & 0\end{bmatrix}\)	Controlled Z (\(CZ\), \(CSIGN\), \(CPHASE\))	\(\begin{bmatrix}1&0&0&0\\0&1&0&0\\0&0&1&0\\0&0&0&-1\end{bmatrix}\)	SWAP	\(\begin{bmatrix}1&0&0&0\\0&0&1&0\\0&1&0&0\\0&0&0&1\end{bmatrix}\)

error	state	probability	syndrome	correction
\(III\)	\(\alpha\ket{000}+\beta\ket{111}\)	\((1-p)^3\)	\(0,0\)	\(III\)
\(XII\)	\(\alpha\ket{100}+\beta\ket{011}\)	\(p(1-p)^2\)	\(1,0\)	\(XII\)
\(IXI\)	\(\alpha\ket{010}+\beta\ket{101}\)	\(p(1-p)^2\)	\(1,1\)	\(IXI\)
\(IIX\)	\(\alpha\ket{001}+\beta\ket{110}\)	\(p(1-p)^2\)	\(0,1\)	\(IIX\)

error	state	probability	syndrome	correction
\(III\)	\(\alpha\ket{+++}+\beta\ket{---}\)	\((1-p)^3\)	\(0,0\)	\(III\)
\(ZII\)	\(\alpha\ket{-++}+\beta\ket{+--}\)	\(p(1-p)^2\)	\(1,0\)	\(ZII\)
\(IZI\)	\(\alpha\ket{+-+}+\beta\ket{-+-}\)	\(p(1-p)^2\)	\(1,1\)	\(IZI\)
\(IIZ\)	\(\alpha\ket{++-}+\beta\ket{--+}\)	\(p(1-p)^2\)	\(0,1\)	\(IIZ\)
